Industrial Ceiling Fan for Dairy Farms

Application

Dairy farms

Pig farms

Sheep farms

Horse farms

Chicken coops



Industry Characteristics

1.High temperature



2.Big smell, many germs



3.Humid environment



4.Many mosquitoes



5.Livestock susceptible to disease



6.High mortality rate

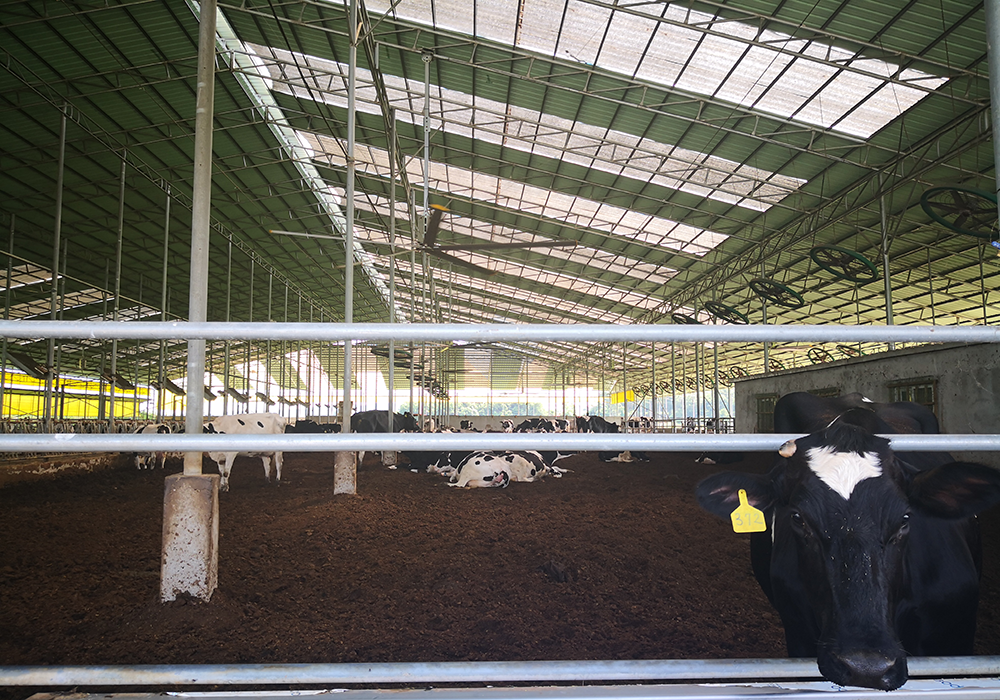

The livestock place is the initial application occasion for the invention of HVLS industrial large ceiling fan. Dairy farms, sheep farms, pig farms and other livestock places have a large closed area and are relatively dirty. The use of small industrial exhaust fans can not do the air conditioning of the whole site, and the cost of installing air conditioning and other equipment is too large. The use of large industrial ceiling fans, can achieve the entire livestock breeding places and activities in the area of all-round coverage, is the ideal equipment for farm owners to control the growth environment of livestock.



The Benefits Of Using HVLS Fan

1.Cooling Of Animal’s Body Surface

Through the slow rotation of large industrial ceiling fans, a three-dimensional circulating airflow is formed to cover the livestock and achieve the purpose of reducing the body surface temperature of barn. The suitable temperature can make the livestock feel comfortable, increase appetite, promote digestion, accelerate growth cycle and reproduction and production capacity.



2.Repel Mosquitoes And Insects

The industrial ceiling fan pushes the airflow and sends air from top to bottom in three dimensions, strengthening air circulation in all directions, multiple angles and no dead ends, covering the whole feeding place, driving away mosquitoes and preventing livestock from being bitten.



3.Outstanding Dehumidification Effect And Reduce Disease

The circulating flow of industrial ceiling fan can quickly exchange with the new outdoor air through the door, window or roof to reduce the germs in the air and prevent diseases and infections.



4.Improve Air Quality

The air flow driven by the wind volume generated by the operation of large ceiling fans can remove harmful gases such as ammonia, hydrogen sulfide and carbon dioxide from the premises in time to improve air quality, improve the living environment and reduce the rate of livestock diseases.



5.Energy Saving And Emission Reduction

Large ceiling fans consume only 0.8 degrees of electricity per hour, compared with other ventilation and cooling equipment, effectively reducing operating costs.





Recommend Products

EURUS II

The Eurus II series of industrial energy-saving fans is a huge ceiling fan with a diameter of 7.3 meters. The Kale Airfoil Blades, manufactured by applying aerodynamic principles and advanced technology, can drive a large amount of air with a power of only 1.5KW or less, generating a large area of natural breeze system, which has the dual functions of ventilation and cooling.



Model

Size

Air volume

Max speed

Fan weight

Power

Full load current

Noise level

HVLS-D6BAA73

24ft(7.3m)

13050m³/min

55RPM

120kg

1.5Kw

5.7Amps/220V 3.5Amps/380V

<40.0dB(A)

HVLS-D6BAA61

20ft(6.1m)

12150m³/min

65RPM

105kg

1.5Kw

5.7Amps/220V 3.5Amps/380V

<40.0dB(A)

HVLS-D6BAA49

16ft(4.9m)

11250m³/min

75RPM

80kg

1.5Kw

4.2Amps/220V 2.4Amps/380V

<40.0dB(A)

HVLS-D6BAA36

12ft(3.6m)

10350m³/min

95RPM

65kg

1.1Kw

4.2Amps/220V 2.4Amps/380V

<40.0dB(A)
