The EURUS II Industrial Ceiling Fan ultilizes advanced aerodynamics in Kale's Dovetail Power Blades for efficient air circulation. With a power consumption of only 1.5KW or less, it offers substantial ventilation and temperature cooling. Crafted from robust materials like forged steel and aircraft-grade aluminum, it ensures safety and longevity. The gear-motor features German LENZE technology for reduced noise, increased safety, and energy efficiency. Precision-engineered hubs guarantee dynamic balance, while the Schneider electrical sets and German control cabinet ensure top-tier safety and performance. The Dovetail Power Blades and unique connector highlight its superior design and reliability, making it an ideal solution for large area ventilation and cooling.
Main Components:
Gear-Motor
Adopt imported Germany LENZE motor, and work with Germany company to develop geared motor for HVLS products.
1.Use low backlash assembly process and gear grinding technique, lower noise
2.Strength the bearing frame structure, increase oil seal and strength the motor structure with trapezoidal shaft structure, higher safety
3.Adopt IE2 high efficient motor, save more 5-10% than IE1
4.Passed CCC, CE, UL certificates
Hub
The hub made by 1500T hot forging, numerical control machining and CNC precise machining. Forging is able to confirm the consistency of metal structure, which can keep the inside structure and the outside shape of forged pieces consistent. Complete streamline structure of the metal confirms the best mechanical property of the hub. By CNC machining, the precision tolerance has been controlled in 100um, which guarantees the precise dynamic balance of the hub.
Control System
Top level electrical configuration in HVLS industry, Schneider brand electrical sets, with building safety protection module which will shut down the output automatically in case of some accidents. International（Danfoss & Scheider）brand control cabinet, passed EMC by SGS and CCC certificates, meanwhile, passed anti-creeping tests which shields electromagnetic interference effectively. Protection level is IP55, passing UL, EMC,LVD, ROHS certificates.
Dovetail Power Blades
EURUS II series fans are equipped with dovetail power fan blades, which are Kale's new generation fan blades. Low-speed operation eliminates heat accumulation on the roof and can be used in multiple seasons, which will significantly improve the air volume, wind layer, coverage, and safety performance! Core Advatages of EURUS II HVLS Fans: Large air volume, wide range, high wind layer!

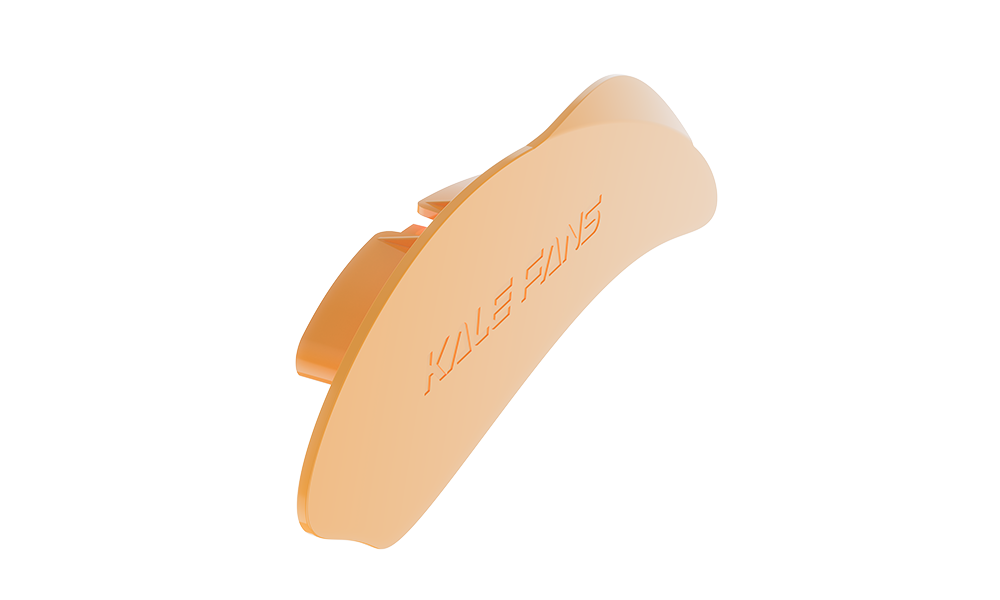

Winglet
The kind of empennage is always seen among airplanes and motorcycle races, but it’s not designed for beauty. Eddies will be formed in the end of the streamlined fan blade while airflow is running. With winglet, this part of energy loss will be avoided, fan will run steadily, which will bring economic effect.
Connector for Fan Blade
KALE unique patented jacket-type connector adopt three cold forging process + magnetic force grinding process + anodic oxidation process, aviation hard aluminum 7050 aging heat treatment, certificated by the national quality inspection center, it bears more than millions of times of fatigue experiment, completely solve the break and drop problem caused by long time running!
Parameter:
|
Model
|
Size
|
Air volume
|
Max speed
|
Fan weight
|
Power
|
Full load current
|
Noise level
|
|
HVLS-D6BAA73
|
24ft（7.3m）
|
14100m³/min
|
57RPM
|
110kg
|
1.5kW
|
5.7Amps/220V
3.5Amps/380
|
<40.0dB（A）
|
|
HVLS-D6BAA61
|
20ft（6.1m）
|
12500m³/min
|
58RPM
|
97kg
|
1.5kW
|
5.7Amps/220V
3.5Amps/380
|
<40.0dB（A）
|
|
HVLS-D6BAA49
|
16ft（4.9m）
|
11300m³/min
|
62RPM
|
74kg
|
1.5kW
|
4.2Amps/220V
2.4Amps/380
|
<40.0dB（A）
|
Installation:
Our seasoned engineering team, specializing in electricity, mechanics, and architecture, offers tailored installation plans based on stress analysis for diverse structures. We are proficient in installing fans for qualified structures, prioritizing a meticulous approach.
Key Features:
1.Customized installation plans to suit specific needs.
2.Well-equipped with life trucks for efficient installation.
3.Extensive experience in debugging levels, heights, and balance.
4.Conducting dynamic balance tests to ensure steady operation.
5.Utilizing fasteners with torque standards for optimal fastening.
6.Implementing a concise and scientifically grounded installation process.
